YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine
Equipment Introduction
G6565Laser cutting machine is a new generation of laser cutting machine, compared with the previous models in terms of performance or humanized operation design, has been significantly improved. According to the market demand of customers, the overall performance of the equipment has been raised to a new level. While improving the cutting speed, it also ensures excellent cutting quality. The performance and operability are completely comparable to imported equipment, and the cost performance is much higher than imported machines.
Parameter
| Machine Model |
YS-G6565 |
| Laser Power |
QCW-150W/1500W |
| Laser Wavelength |
1070nm |
| Beam Quality |
M²<1.1 |
| Cutting Speed |
About 23000 pad/h |
| Working Range |
650mm*650mm |
| Clamping Size |
680mm*720mm |

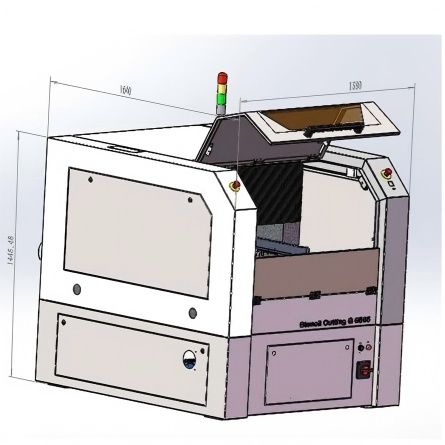

| Overall Dimension |
1640mm*1380mm*1500mm |
| Cutting Accuracy |
±0.01mm (Specified material) |
| Positioning Accuracy |
±2μm |
| (Repeated positioning accuracy) |
±2μm |
| Cooling Way |
Air cooling/water cooling |
| (Auxiliary cutting gas) |
Oxygen 8-10Kg
Compressed air16Kg
|
Product Features
1.Adopting double drive structure of linear motor with iron core, high inertia and large thrust, the maximum acceleration can reach 2.0G, ensuring high-speed and accurate action of the equipment;
2.The use of American imported drivers, advanced adjustment andsetting algorithms greatly improve cutting performance and ensure processing accuracy;
3.Imported IPG fiber laser, stable output power, long life, maintenance-free, vertical smooth processing hole wall, but also to ensure the stability of the processing process;
4.The whole machine adopts natural marble as the matrix structure,which is safe and stable;
5.Equipped with high-precision grating ruler full closed-loop system,real-time feedback, reduce repeated positioning error;
6.Convenient operation: the man-machine interface is simple and easy to understand, can process any plane graphics, the equipment is small in size;
7.The equipment has high reliability and can be continuously and stably produced for 24 hours to meet the needs of industrial mass production and process in Customized customization ability, can be tailored to customer needs to
create exclusive models;
Introduction of main modules of equipment:
1.Motion Module:
2.Rack Platform
3.Specification
